A robot has assembled a working tabletop laser cavity in less than 30 minutes, handling the precise alignment usually done manually.
asserted
robot → assemble → alignment
Massachusetts Institute of Technology's (MIT's) researchers have developed a reconfigurable robotic optics laboratory that can pick up and position mirrors, lenses and other components, fine-tune them with micron-scale precision and even correct the setup after it is disturbed.
asserted
it → develop → setup
According to MIT News, the system successfully assembled a functioning tabletop laser cavity in 50 autonomous manoeuvres within 30 minutes.
uncertain
system → accord → minutes
When researchers deliberately moved components, the robotic system automatically adjusted the setup to maintain the laser's intensity, demonstrating how an autonomous laboratory could continuously monitor and repair its own experiments.
uncertain
laboratory → move → experiments
A robot takes over the painstaking part of optics
Precision optics experiments often depend on carefully positioning lasers, mirrors, lenses and cameras.
asserted
experiments → take → lasers
Even a small change in the angle or position of one component can affect the entire experiment, meaning researchers may have to repeatedly adjust and realign equipment.
uncertain
researchers → affect → equipment
MIT's new system is designed to automate that process from beginning to end.
asserted
system → design → end
Rather than simply controlling one motorised component, the robotic laboratory can start with optical components that are randomly placed on a tabletop, identify them, move them into position, align them and continuously fine-tune the experiment.
asserted
that → control → experiment
It can also dismantle one configuration and build another.
asserted
It → dismantle → another
The researchers say manual optics experiments can take days or months depending on their complexity.
asserted
experiments → say → complexity
Existing laboratories already use some automated tools, such as motorised systems for adjusting mirrors, but MIT's system combines those functions into a broader autonomous setup.
asserted
system → exist → setup
Sachin Vaidya, a postdoctoral researcher at MIT's Research Laboratory of Electronics, said the team's goal was to create a system that could go from no setup to a completely aligned experiment using one automated platform.
uncertain
that → say → platform
His comments were reported by MIT News.
asserted
comments → report → News
How the robotic optics lab works

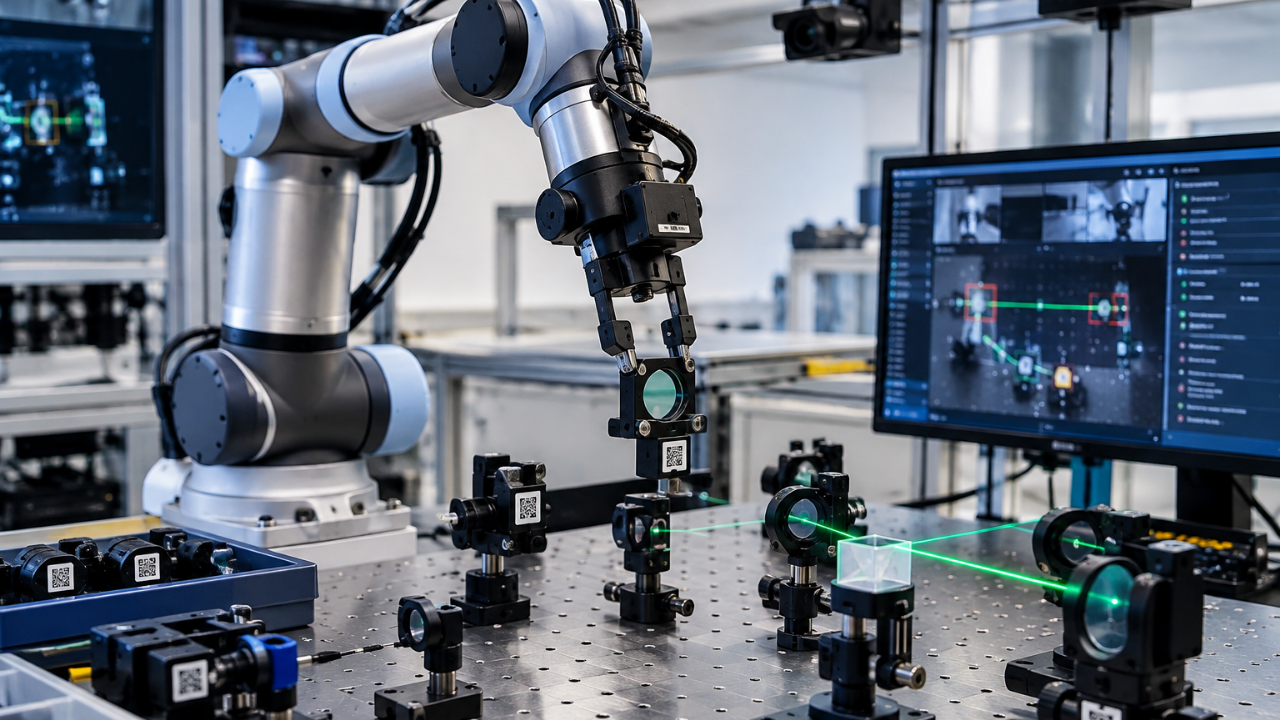

At the centre of the system is a robotic arm with seven movable joints.
asserted
arm → work → joints
It operates on a metallic tabletop and handles optical components housed in specially designed 3D-printed mounts.
asserted
It → operate → mounts
Each housing carries a QR code containing information about the component inside, including whether it is a mirror or lens and details about its capabilities.
asserted
it → carry → capabilities
Magnetic bases help hold the components securely once they have been placed on the tabletop.
asserted
they → help → tabletop
The team also developed a wireless fine-adjustment tool that attaches to standard optical mounts.
asserted
that → develop → mounts
The tool can turn adjustment knobs automatically, allowing the robot to change the angle of a mirror or make similarly precise corrections.
asserted
robot → turn → corrections
Two cameras positioned above the experiment provide a bird's-eye view of the setup.
asserted
cameras → position → setup
Software then coordinates the different steps, including recognising components, deciding where they need to go, picking them up safely and avoiding collisions.
asserted
they → coordinate → collisions
The robot is not simply moving equipment from one location to another; it is also fine-tuning and correcting the experiment as it operates.
asserted
it → move → experiment
To demonstrate what the system could do, the researchers chose a laser cavity, a component used in many optics experiments.
uncertain
researchers → demonstrate → experiments
A laser cavity consists of two mirrors positioned on either side of a crystal.
asserted
cavity → consist → crystal
Light travels back and forth between the mirrors and passes through the crystal, which amplifies its intensity.
asserted
which → travel → intensity
Eventually, enough intense light escapes from the system to form a laser.
asserted
light → escape → laser
The researchers deliberately selected the laser cavity because it required substantial alignment and optical experience.
asserted
it → select → alignment
The robot began with the components unassembled.
asserted
robot → begin → components
It then autonomously arranged them into the required configuration and fine-tuned the system.
asserted
It → arrange → system
The result was a functioning laser cavity after 50 manoeuvres in less than 30 minutes.
asserted
result → function → minutes
That demonstration also showed another capability that could be important for future autonomous laboratories: recovery after disruption.
uncertain
that → show → disruption
It can correct itself after being disturbed
Once the laser cavity was operating, the researchers deliberately introduced physical disturbances, including randomly moving a component on the tabletop.
asserted
researchers → correct → tabletop
Instead of requiring a person to inspect the system and manually restore the alignment, the robot detected the change and automatically adjusted the components to maintain the laser's intensity.
asserted
robot → require → intensity
That self-correction could be particularly useful because optics experiments can be affected by seemingly minor environmental changes.
uncertain
experiments → affect → changes
Vibrations or temperature variations can gradually shift components enough to degrade measurements.
asserted
Vibrations → shift → measurements
Vaidya told MIT News that an autonomous system could continuously monitor an experiment and repair its alignment before valuable data is lost.
uncertain
data → tell → alignment
From laboratory experiment to remote science
MIT researchers envision the system eventually becoming part of a much larger automated research environment.
asserted
system → envision → environment
They are developing a cloud-based application that could allow researchers to interact with physical robotic optics laboratories remotely.
uncertain
researchers → develop → laboratories
In the envisioned system, a scientist could submit an experimental protocol or query online, with the robotic laboratory physically assembling and running the requested experiment.
uncertain
laboratory → envision → experiment
The researchers also envision automated systems that could fetch components from a nearby library, deliver them to the optics robot and allow the laboratory to repeatedly build, operate and dismantle different experiments.
uncertain
laboratory → envision → experiments
